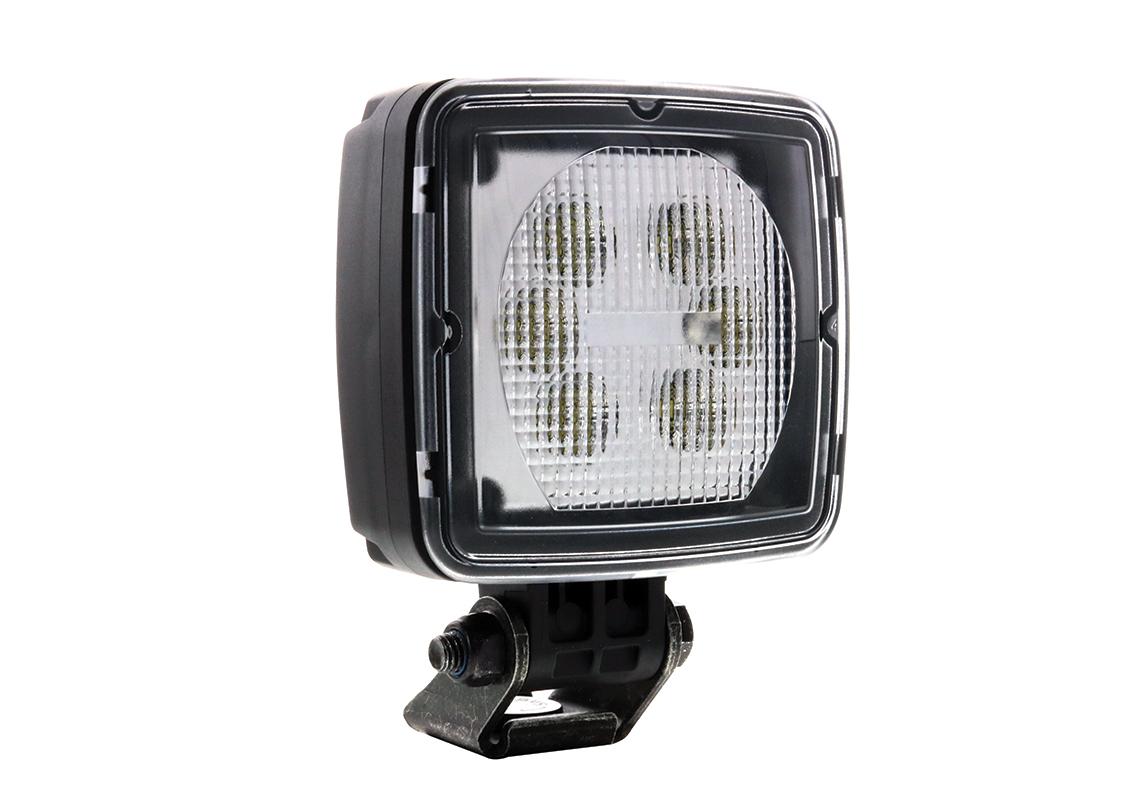

ABL Arbeidslys LED Compact SL 1500

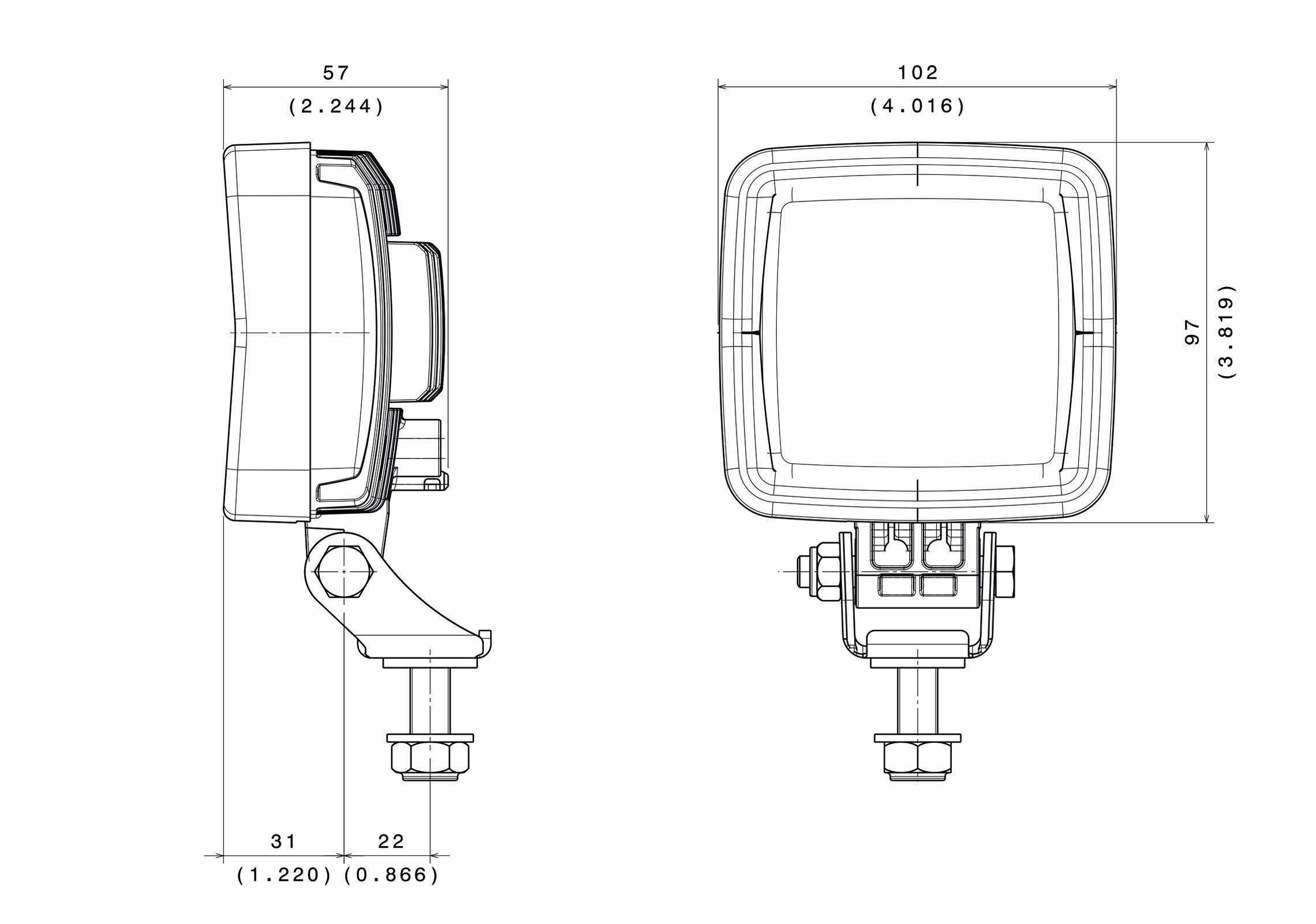

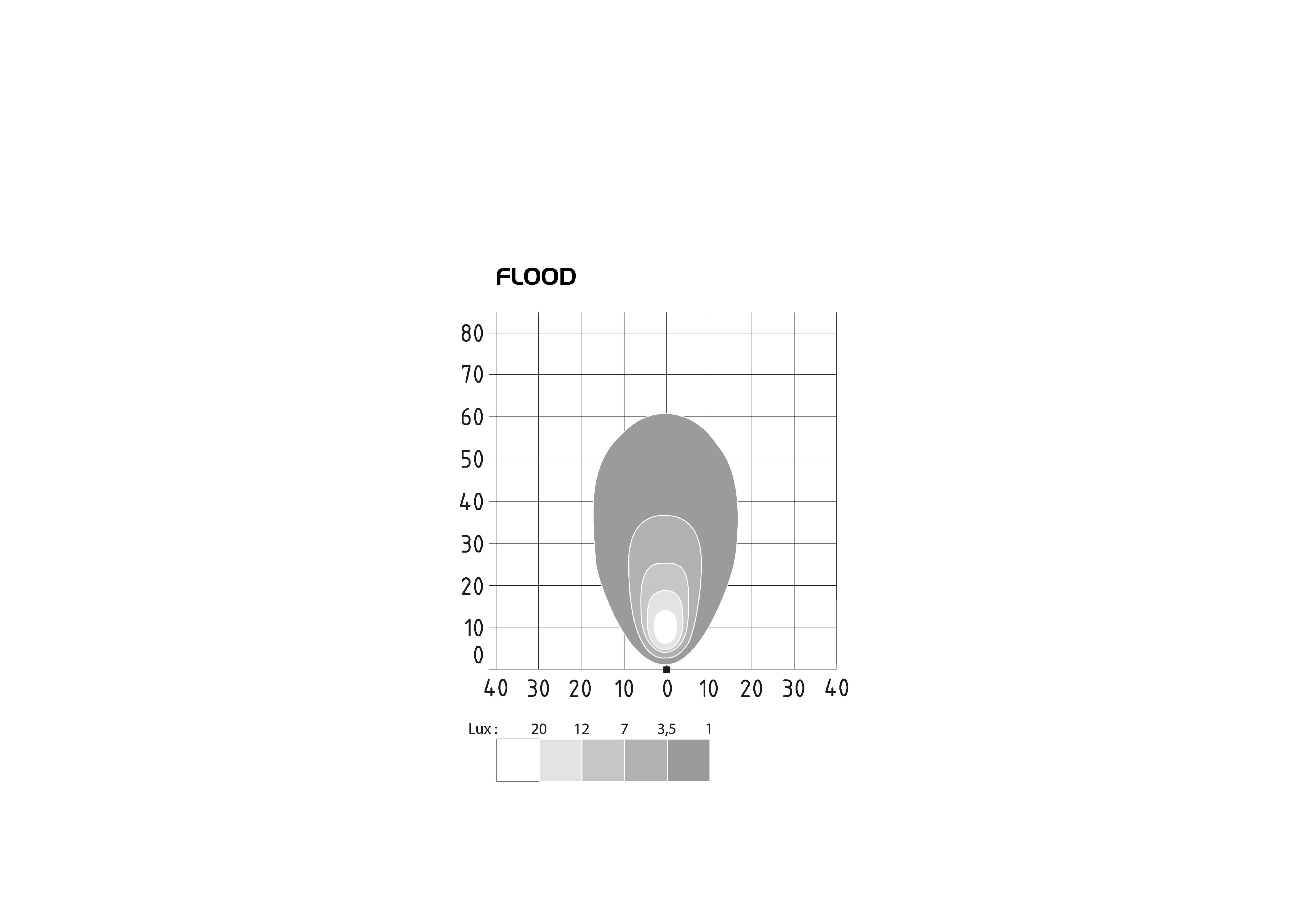

Several configurations possible thanks to the different choices of lenses, light patterns ... As standard this work light includes features such as the EMC CISPR25 class 5 as well as the integrated load dump, to meet the most severe manufacturer specifications. Technical characteristics Brand: ABL Product Type: Work light Manufacturer: De Buf Voltage: 12/24 V Source: LED Amperage: 0,85 AMP at 24V Consumption: 20W Operational Lumen: 1500 Lumen Color Temperature: 6000 K for crystal version Light pattern: Flood Color: Crystal Connector: DT 2 pin Mounting: Pedestal Lens Material: Polycarbonate plastic cover Housing Material: Bi-material (plastic body and aluminum dissipator) Shape: Square Width: 102 mm Depth: 63 mm Height: 97 mm Weight: 0,5 Kg IP protection: IP68 - IP69K Polarity: Protected against reverse voltage Electronic Thermal Management: Full output at +35°C ambiant, 25 % dimmed at + 50°C ambiant Operation Temperatures: -40°C to +85°C Load Dump: 36V CONTINUOUS / ISO 7637-2 Pulse 5a Salt Spray Test: ISO 9227 Vibration Resistance: 15 Grms, from 24Hz to 2000Hz Shock resistance: 60G Lifetime: 30 000 operating hours EMC: ISO 13766 - ISO 14982 - ISO 12985 - CISPR25 Class 5 Industry: Agriculture, Construction, Handling and Forklifts, Priority vehicle, Trailers and Semi-trailers, Trucks, Vans and Chassis cab Construtor :CATERPILLAR Model :TRACTOR Reference :589-0465 Start date : End date :
